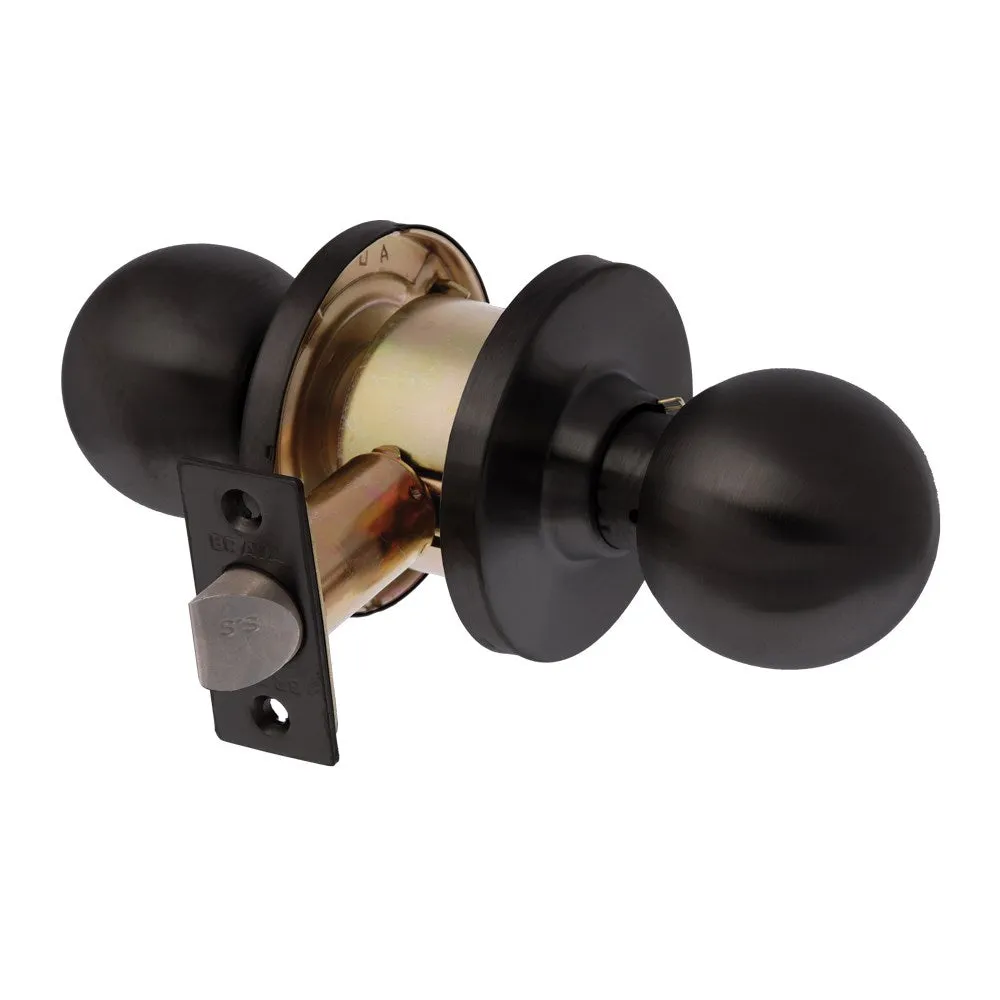

BRAVA Metro EA3000 series commercial grade passage knobset 70 mm backset.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Passage function
- Both outside and inside knobs are always free.
Additional info
- Cylindrical fixing.
- Boxed and colour coded.
- Finished in matt black.
| Door thickness | 35-45 mm |
| Backset | 70 mm |
|
max. Lever / knob projection |
69.5 mm |
| Strike | 70 mm x 27 mm x 1.2 mm |
| Latch | 70 mm backset |
| Latch face plate | 57 mm x 25 mm |
| Door handing | Non-handed knobs/levers |
| Rose | 75 mm |
Technical Specifications
| Brand | BRAVA |
| Finish | Matt Black |
| Function | Passage |
| Lock Grade | Commercial |
| Lock Type | Cylindrical |
| Rose Diameter (in mm) | 75 |
| Suits Door Thickness | 35 mm to 45 mm |
| Backset | 70 mm |
| Fire Rated | Yes, 4 hours |
